3-in-1 Servo Decoiler Straightener Feeder for Medium-Thick Plate (0.5-4.5mm)

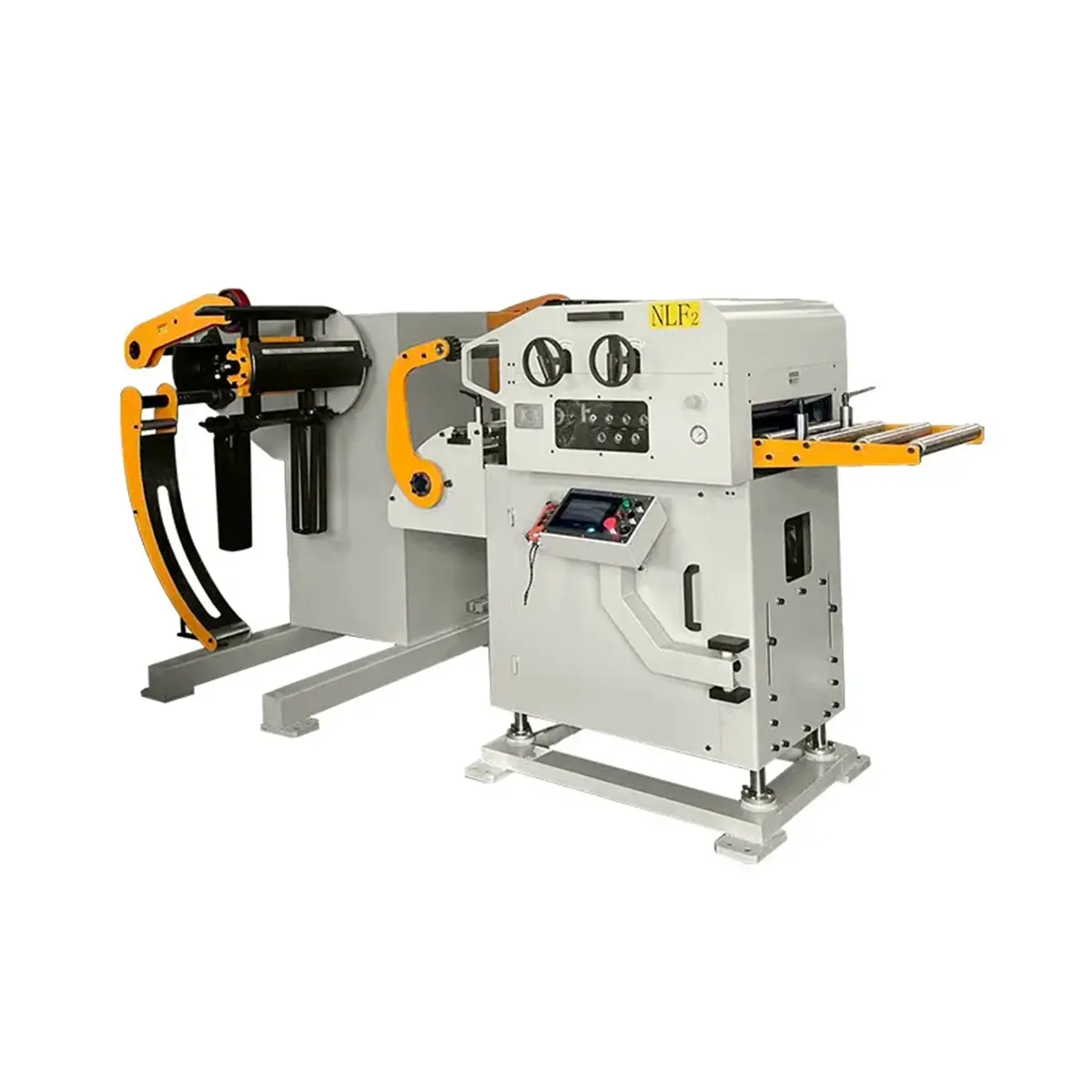

The NLF2 is a 3-in-1 decoiler straightener feeder for medium-thick plate from 0.5 to 4.5 mm. It combines decoiling, straightening and precision feeding in one compact unit with a short, single material path.

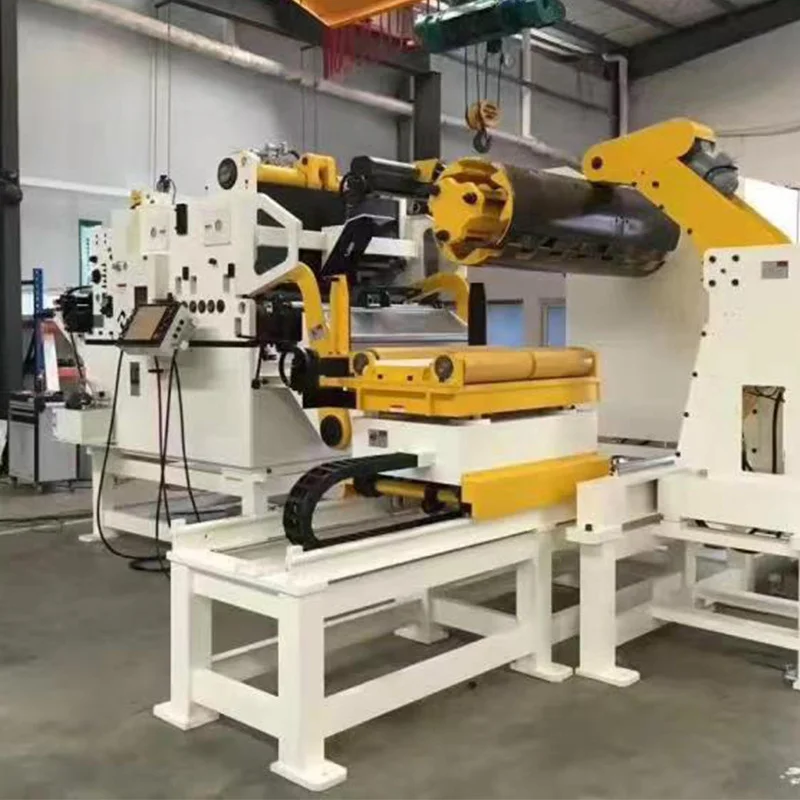

What Is a 3-in-1 Decoiler Straightener Feeder?
A 3-in-1 decoiler straightener feeder integrates a coil decoiler, a straightener (leveler) and a servo feeder into a single machine. This design removes the footprint of a separate decoiler-to-leveler connection, ideal for medium-thick coil feeding.
The NLF2 processes hot-rolled, cold-rolled, galvanized and stainless steel coils from 70 to 1000 mm wide and 3000 to 5000 kg (7000 kg optional). Hydraulic coil expansion, a servo feed motor and PLC touchscreen control deliver ±0.15 mm accuracy at 22 m/min.
Applications
- Automotive structural and chassis part stamping
- Heavy machinery and engineering parts
- Medium-thick plate coil feeding
- Appliance and electronics hardware stamping
- Lines for appliance metal stamping
Models & Sizes
| Model | Width (mm) | Thickness (mm) | Max Coil (kg) |
|---|---|---|---|
| NLF2-400 | 70-400 | 0.5-4.5 | 3000 (5000) |
| NLF2-500 | 70-500 | 0.5-4.5 | 3000 (5000) |
| NLF2-600 | 70-600 | 0.5-4.5 | 3000 (5000) |
| NLF2-800 | 70-800 | 0.5-4.5 | 5000 (7000) |
| NLF2-1000 | 70-1000 | 0.5-4.5 | 5000 (7000) |
Technical Specifications
| Parameter | NLF2 Series |
|---|---|
| Width of material | 70-1000 mm |
| Thickness of material | 0.5-4.5 mm |
| Max. coil weight | 3000-5000 kg (7000 kg optional) |
| Coil I.D. / O.D. | 508 mm / 1400 mm |
| Max. line speed | 22 m/min |
| Feed accuracy | ±0.15 mm |
| Work rolls | Up 4 / Down 3 |
| Feed rolls | 1 set |
| Feed level | 1200±100 mm |
| Uncoil expansion | Hydraulic |
| Main (servo) motor | 4.4 / 4.4 / 4.4 / 5.5 / 5.5 kW |
| Uncoil motor | 1.5 (2.2) / 1.5 (2.2) / 1.5 (2.2) / 2.2 (3.7) / 2.2 (3.7) kW |
| Power supply | AC 220V 60Hz / 380V 50Hz |
| Air supply | 5 kg/cm² |
Straightening Capacity
Maximum corrected width at yield strength σs=245 N/mm² (tensile σb=392 N/mm²). Thicker material allows narrower width — see the thickness-width table for sizing.

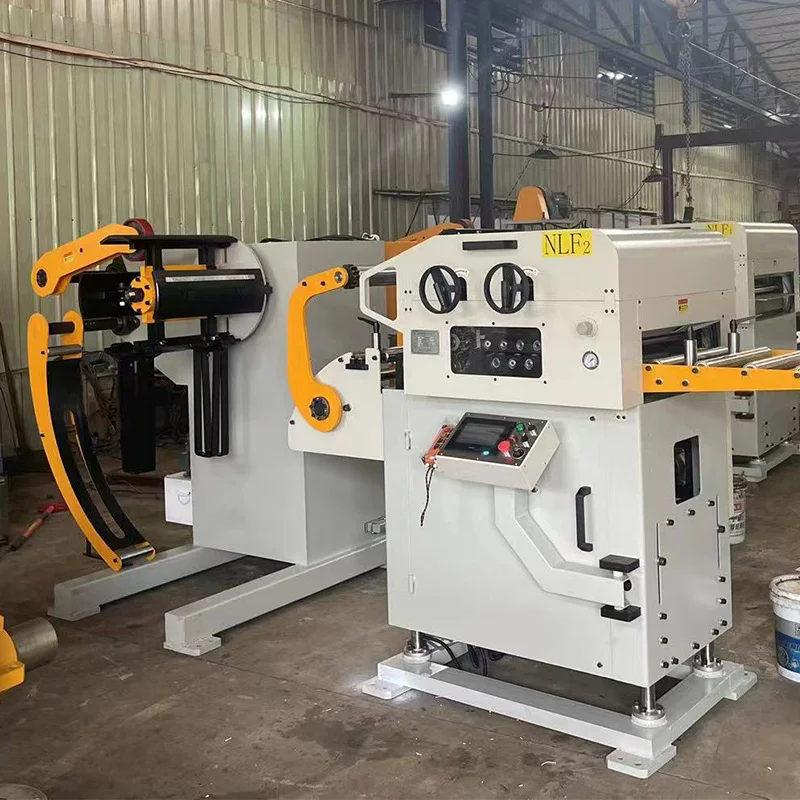

Key Features
3-in-1 Compact Design
One material path from coil payoff to straightening to feeding, installing without a pit.
Medium-Thick Plate Handling
Up-4/down-3 work rolls deliver flat, stable feeding.
Servo Precision Feed
Servo motor sized by width (4.4-5.5 kW) achieves ±0.15 mm accuracy.
Hydraulic Coil Expansion
Hydraulic expansion ensures secure coil loading and fast changeover.
Optional Upgrades
Coil weight and uncoil motor upgrades for heavier coils.
Line Integration
Pair the NLF2 3-in-1 feeder directly with a press for medium-thick plate stamping. Compare with our servo NC feeders and handling robots for a complete line.
FAQ
What thickness can the NLF2 handle?
0.5 to 4.5 mm, with maximum width varying by thickness per the capacity table.
What materials does it process?
Hot-rolled, cold-rolled, galvanized and stainless steel coils.
How accurate is the feeding?
±0.15 mm feed accuracy via an AC servo feed motor.
Does it need a foundation pit?
No. The compact 3-in-1 design installs without a pit.
