What Is a Sheet Feeder for Stamping?

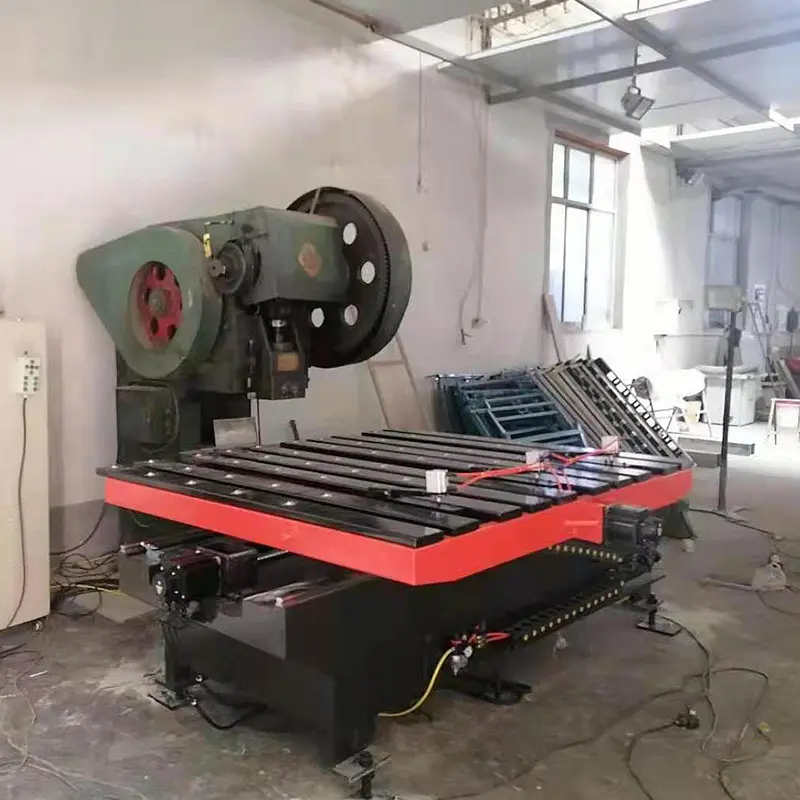

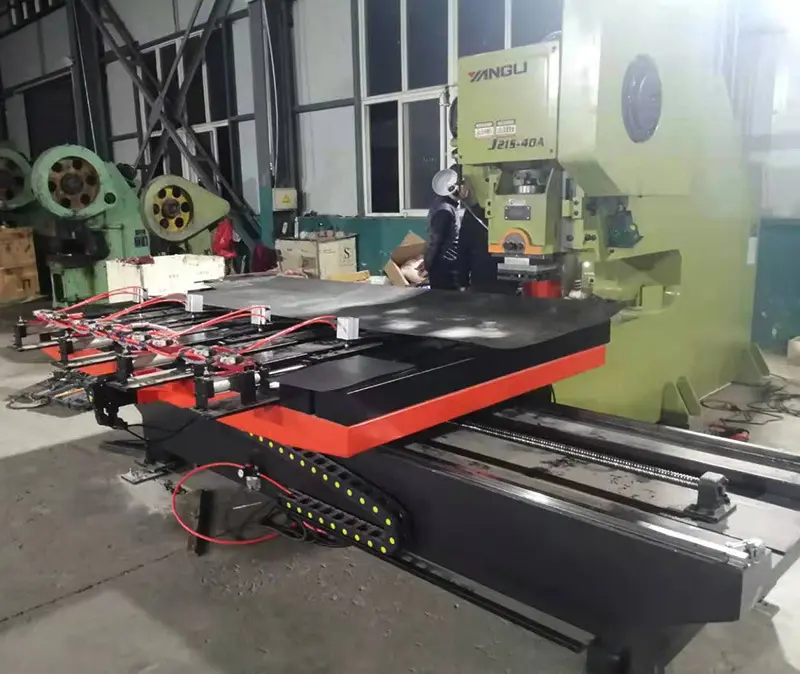

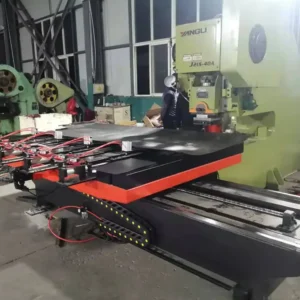

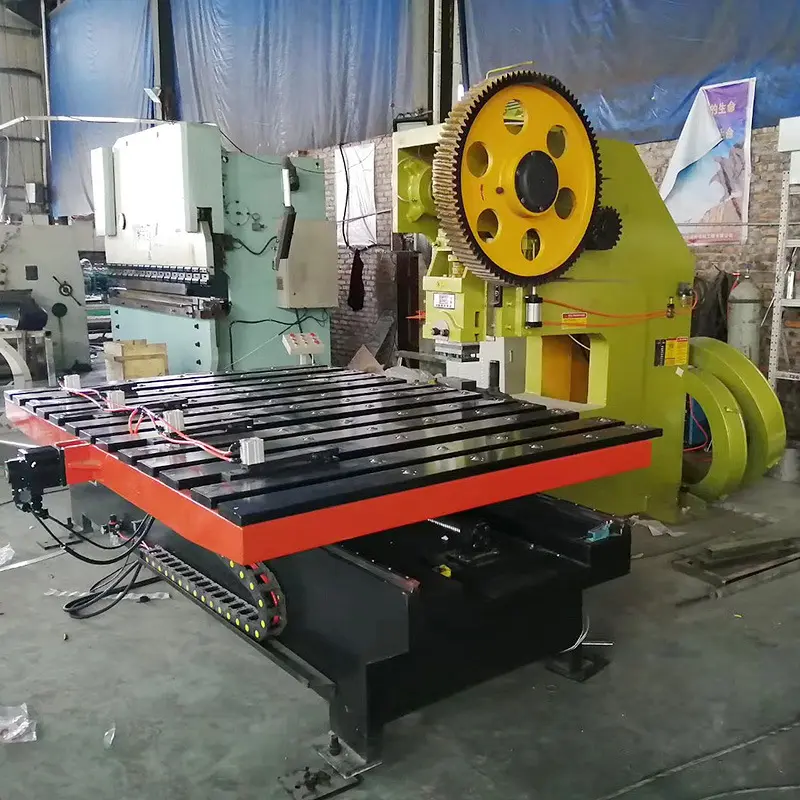

A sheet feeder for stamping grips and advances large flat metal sheets into a press automatically. The clamping mechanism positions each sheet, then feeds it precisely to the die.
The GS Series uses servo motors to drive this motion. It replaces manual sheet handling with repeatable, accurate feeding.
Applications
- Home appliance housing stamping
- Automotive body panel stamping
- Large hardware component production
- Press automation for large sheets
- Appliance metal stamping of large housings — learn more
Models & Sizes
| Model | Width × Length | Thickness | Servo Power |
|---|---|---|---|
| GS-800 | 800 × 2000 mm | 0.5–2.2 mm | 2.9 kW |
| GS-1000 | 1000 × 2400 mm | 0.5–2.2 mm | 2.9 kW |
| GS-1300 | 1300 × 3000 mm | 0.5–2.2 mm | 2.9 kW |
| GS-1500 | 1500 × 4500 mm | 0.5–2.2 mm | 2.9 kW |
Technical Specifications
| Max plate size | 4500 × 1500 × 2 mm |
| Feeding accuracy | ±0.5 mm |
| Servo motor | 2.9 kW / 1.8 kW |
| Material | Steel, galvanized, aluminum, galvalume |
| Material strength | Tensile 400 / yield 275 N/mm² |
Key Features
Large-Sheet Handling
Four models cover sheets from 800 to 1500 mm wide and up to 4500 mm long.
Servo Precision
2.9 kW and 1.8 kW servo motors deliver repeatable positioning within ±0.5 mm.
Adjustable Speed
Feed speed adjusts to match different press cycles for flexible production.
Line Integration
Pair this sheet feeder for stamping with a straightener and material rack for a complete line. For coil-fed jobs, see our servo NC feeders.
FAQ
What sheet sizes does the GS feeder handle?
It covers sheets up to 4500 × 1500 mm by model.
What accuracy can I expect?
Feeding accuracy is within ±0.5 mm.
Which materials does it feed?
Steel, galvanized, aluminum and galvalume sheets.
Request a Quote
Contact for a quote on the GS Series sheet feeder for stamping.
