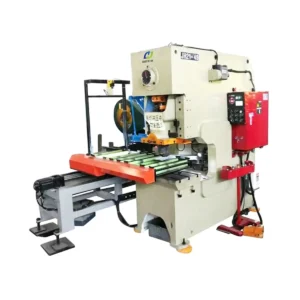

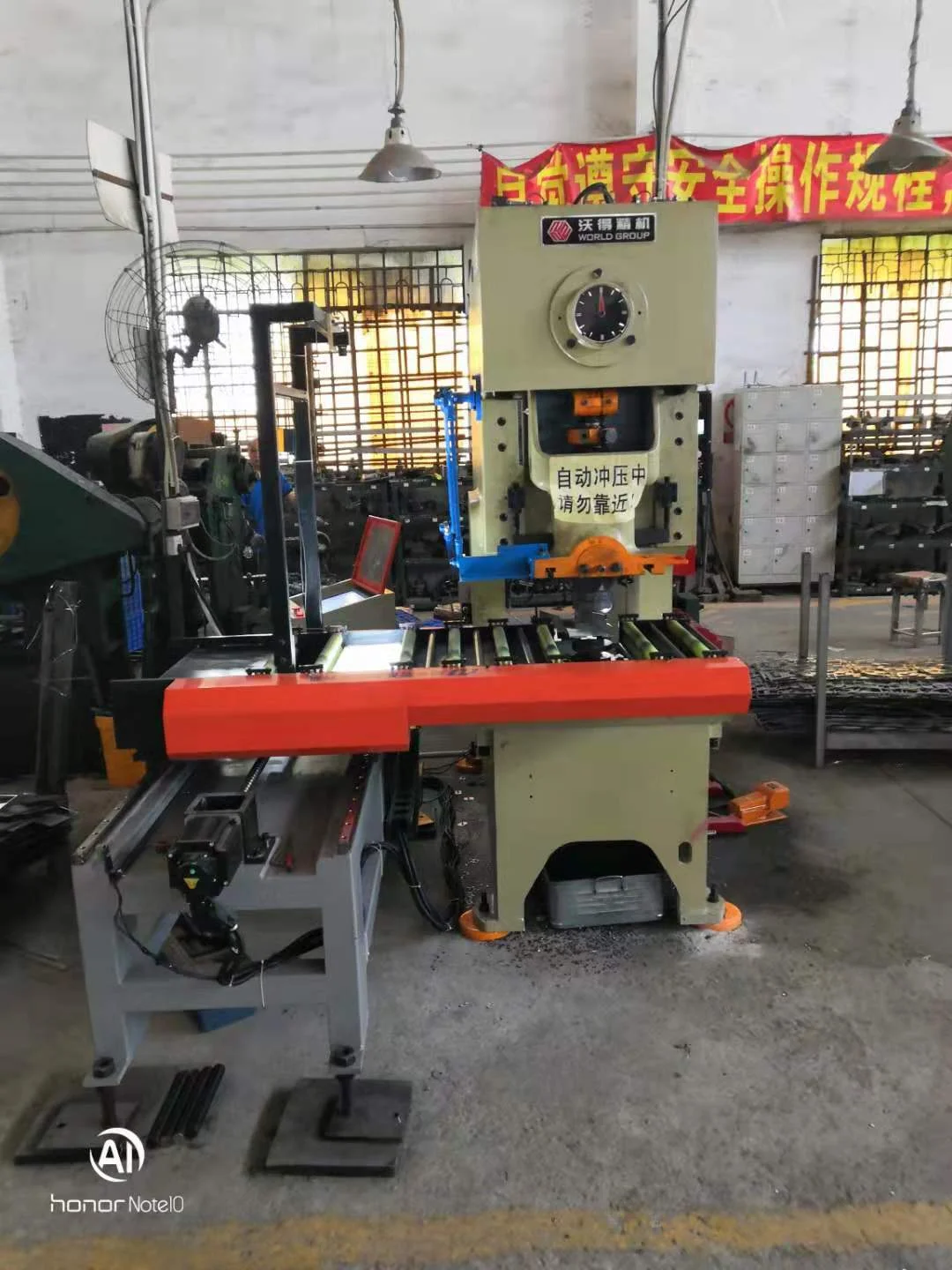

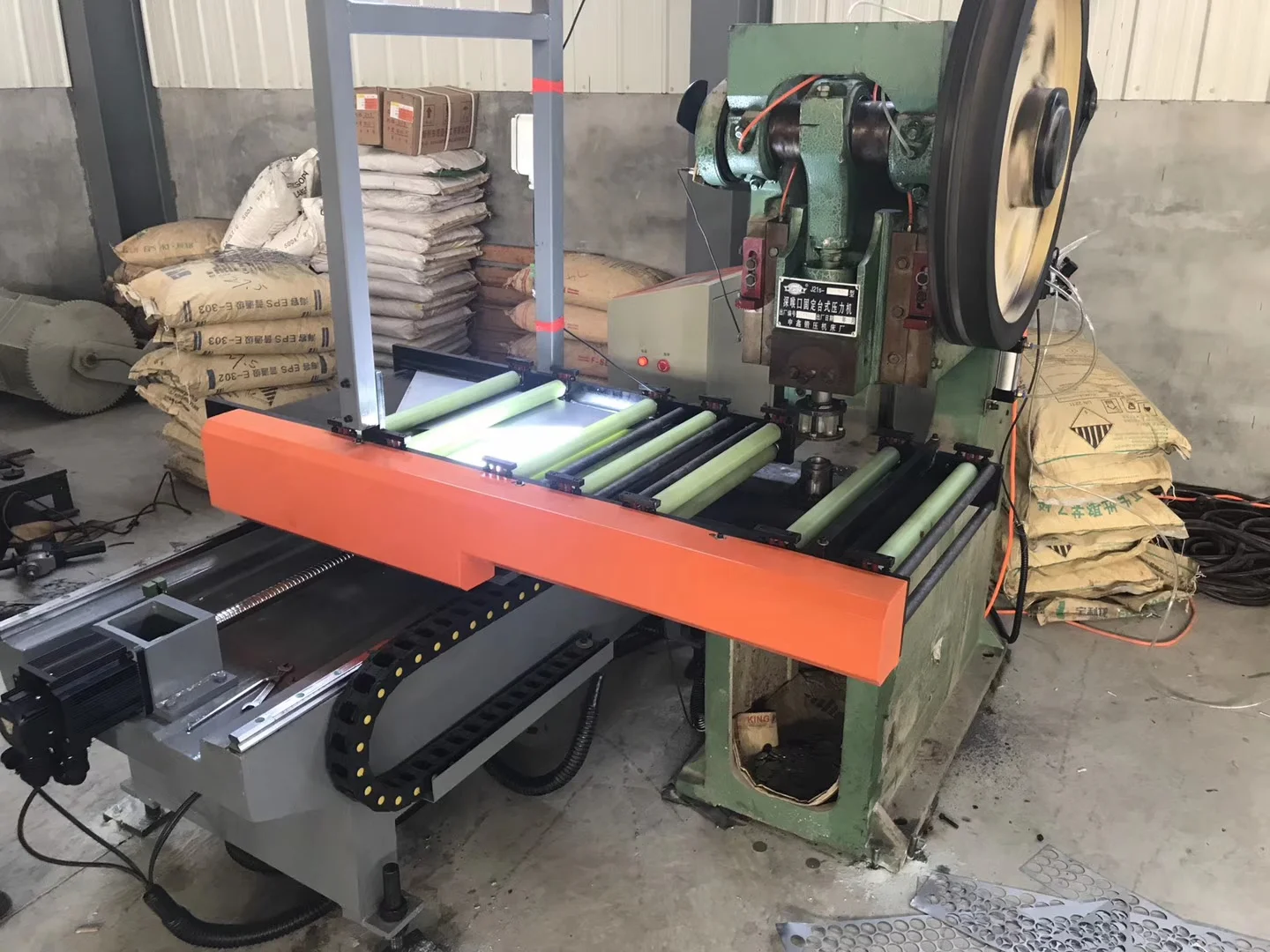

What Is a Vision Servo Feeder?
A vision servo feeder uses machine vision to recognize blank contours, then lays each blank in the optimal position automatically. There is no manual programming needed.
The JT-330 combines this vision system with servo drive for continuous stamping at up to 180 strokes per minute.
Applications
- Irregular blank feeding for presses
- Flat washers, rectangles, discs and rings
- Offcut and pierced stock utilization
- Hydraulic press stamping automation
- Appliance metal stamping of irregular blanks — learn more
Models & Sizes
| Model | JT-330 |
| Feeding platform | 1780 × 600 mm |
| Base size | 2200 × 700 mm |
Technical Specifications
| Servo motor power | 2 kW |
| Max stamping speed | 180 spm |
| Material thickness | 0.5–4 mm |
| X-axis travel | 1100 mm |
| Die opening | 100–270 mm (max 330 mm) |
Key Features
Machine Vision Recognition
The system auto-detects blank contours for fast layout without programming.
Smart Layout Algorithm
Optimized nesting maximizes utilization of irregular blank stock.
High-Speed Stamping
Up to 180 strokes per minute suits high-speed continuous operation.
Line Integration
Pair the vision servo feeder with a decoiler for coil stock, or add a handling robot downstream. For coil-fed precision, see our servo NC feeders.
FAQ
Does the vision feeder need manual programming?
No. Machine vision recognizes contours and lays blanks automatically.
What blanks can it handle?
Regular sheets, strips, offcuts and complex irregular shapes.
How fast can it stamp?
Up to 180 strokes per minute.
Request a Quote
Contacto for pricing on the JT-330 vision servo feeder.
