What Is a Roller Feeder?
A roller feeder advances strip into a press using a clamp-and-feed roller mechanism. A one-way bearing drives the rollers in step with the press crank.
The RFS Series adds a disc brake and reverse device for instant stop and zero backfeed. This keeps feeding precise at high speed.
What Is a Precision Roller Leveler?
A precision roller leveler removes coil curvature and residual stress from thin stock. It passes the strip through offset rollers that apply reverse bending. The load releases gradually for a consistent, flat band.
The DL Series adds a second fine-leveling group. Compared with a single-stage machine, it achieves better flatness and higher speed on thin material.
การใช้งาน
- High-speed press continuous feeding
- Precision hardware stamping
- Home appliance part stamping
- Auto and electronic hardware stamping
- Appliance metal stamping at high speed — learn more
รุ่นและขนาด
| รุ่น | Roller Width (mm) | Feed Length (mm) | Thickness (mm) | Press (t) |
|---|---|---|---|---|
| RFS-105NS | 100 | 50 | 0–1.6 | 5–20 |
| RFS-305NS | 300 | 50 | 0–1.6 | 40 |
| RFS-2010NS | 200 | 100 | 0–3.5 | 40–80 |
| RFS-3015NS | 300 | 150 | 0–3.5 | 60–160 |
ข้อมูลทางเทคนิค
| Roller width | 100–400 mm |
| Feed length | 50/80/100/150 mm |
| ความหนาวัสดุ | 0–1.6 / 0–3.5 mm |
| Press tonnage | 5–160 t |
| ความเร็วป้อน | 20–30 m/min |
| Roller hardness | HRC 60° |
คุณสมบัติเด่น
One-Way Bearing
Super-hard alloy inserts and roller bearings deliver wear resistance and precision.
Reverse Device
Zero backfeed on the lower roller boosts efficiency by about 50 percent.
Disc Brake
Two-face contact clutch lining ensures stable, long-life stopping.
การประกอบระบบสายการผลิต

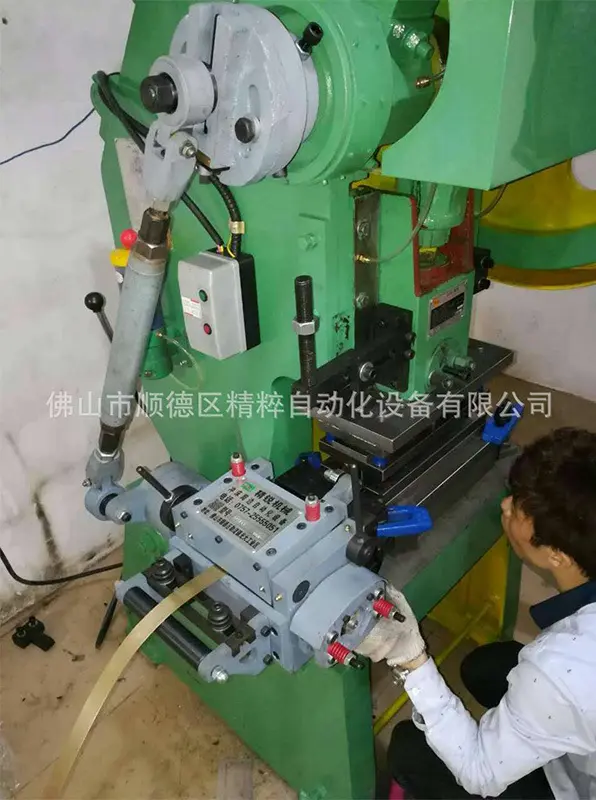

Place this roller feeder after a เครื่องถอดม้วน และ เครื่องยืดตรง for coil stock. For programmable feeding, see our servo NC feeders.
คำถามที่พบบ่อย
How fast does the roller feeder run?
Up to 30 m/min with the reverse device, about 20 m/min without.
What press tonnage does it fit?
The series covers presses from 5 to 160 tons.
Is the reverse device standard?
Confirm configuration with our team when you request a quote.
ขอใบเสนอราคา
ติดต่อ for a quote on the RFS Series roller feeder.
